Brand : Emotiva

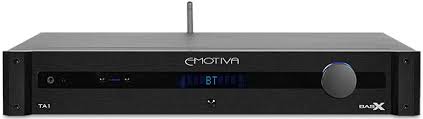

BasX-TA1
Category : Amplifier
Our Best Price
₹ 96,500.00
Product Details
- Stereo Preamp/DAC/Tuner With Integrated Amplifier
Product Description
- Analog Inputs
- 2 pairs - stereo analog line level inputs (CD, Aux).
- 1 pair - stereo phono inputs (switchable; moving magnet or moving coil).
- Tuner - FM (with external antenna input; 15 station presets).
- Digital Inputs
- 1 - digital coax (S/PDIF); 24/192k.
- 1 - digital optical (Toslink); 24/192k.
- 1 - digital USB (DAC input); 24/192k.
- 1 - Bluetooth receiver up to 44.1K (Bluetooth 5, with AptX, AptX HD, and AAC support, antenna included).
- Outputs
- 1 pair - stereo full range main outputs.
- 1 pair - stereo high-pass outputs; with fixed 90 Hz Linkwitz-Riley high-pass filter.
- 1 - subwoofer output; with fixed 90 Hz Linkwitz-Riley low-pass filter.
- 1 - high performance stereo headphone output.
- Analog Performance (line level)
- Maximum output level: 4 VRMS.
- Frequency response: 5 Hz to 50 kHz +/- 0.04 dB.
- THD+noise: < 0.001% (A-weighted).
- IMD: < 0.004% (SMPTE).
- S/N ratio: > 120 dB.
- Crosstalk: < 90 dB.
- Analog Performance (speaker outputs)
- 60 watts RMS/channel; 8 Ohms; both channels driven; 20 Hz – 20 kHz; THD < 0.02%.
- 100 watts RMS/channel; 4 Ohms; both channels driven; at 1 kHz; THD < 1%.
- Minimum load impedance: 4 Ohms.
- Rated impedance: 8 Ohms.
- Frequency response: 20 Hz to 20 kHz +/- 0.15 dB; 5 Hz to 80 kHz +0/-1.8 dB.
- S/N ratio: > 116 dB.
- Analog Performance (phono)
- Frequency response (MM and MC): 20 Hz to 20 kHz; ref standard RIAA curve.
- THD+noise: < 0.015% (MM; A-weighted); < 0.06% (MC; A-weighted).
- S/N ratio: > 78 dB (ref 5 mV; MM); > 58 dB (ref 0.5 mV; MC).
- Gain (ref unity gain on main outputs at 1 kHz): 44 dB (MM); 55 dB (MC).
- Analog Performance (headphone)
- Power Output:
8 Ohms: 23 mW / channel.
33 Ohms: 90 mW / channel.
47 Ohms: 127 mW / channel.
150 Ohms: 145 mW / channel.
300 Ohms: 114 mW / channel.
600 Ohms: 75 mW / channel. - Digital Performance
- Frequency response:
5 Hz to 20 kHz +/- 0.15 dB (44k sample rate).
5 Hz to 80 kHz +/- 0.25 dB (192k sample rate). - THD+noise: < 0.003% (A-weighted; all sample rates).
- IMD: < 0.007% (SMPTE).
- S/N ratio: > 110 dB ref rated output.
- Trigger
- 12 VDC trigger output.
- Power Requirements
- Universal SMPS which accepts anywhere between 100 VAC and 240 VAC.
- Mechanical
- Dimensions:
17” wide x 2-5/8” high x 12-1/2” deep (unboxed; without connectors).
21” long x 7” high x 17-1/2” deep (boxed). - Weight:
15 lbs (unboxed).
20 lbs (boxed).
